PIVOT JOINT

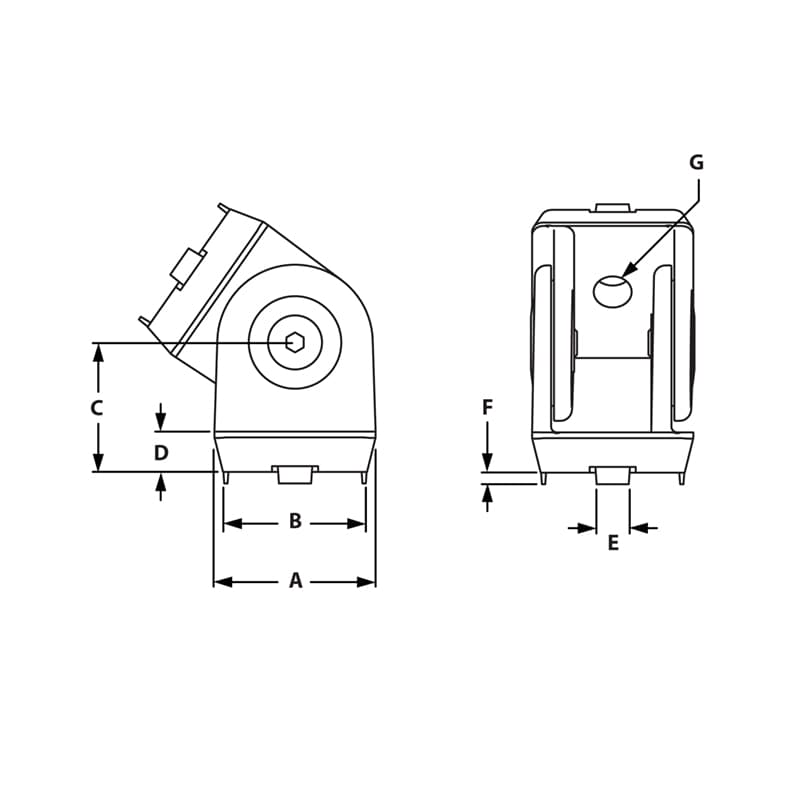

Image of Pivot Joints Image of Draw-Pivot Joints

Bushing enables pivot to be both structural and dynamic, Locating pins can be removed to accomodate both extrusion end and side mount assembly

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Material A B C D E F G List Price Qty. Add to RFQ
664084

10
Die Cast Zinc
1.102"
.984"
.886"
.275"
.236"
.079"
.260"
29.340
664086

15
Die Cast Zinc
1.574"
1.496"
1.181"
.315"
.315"
.079"
.335"
30.330
