PIVOT JOINT WITH LOCKING HANDLE

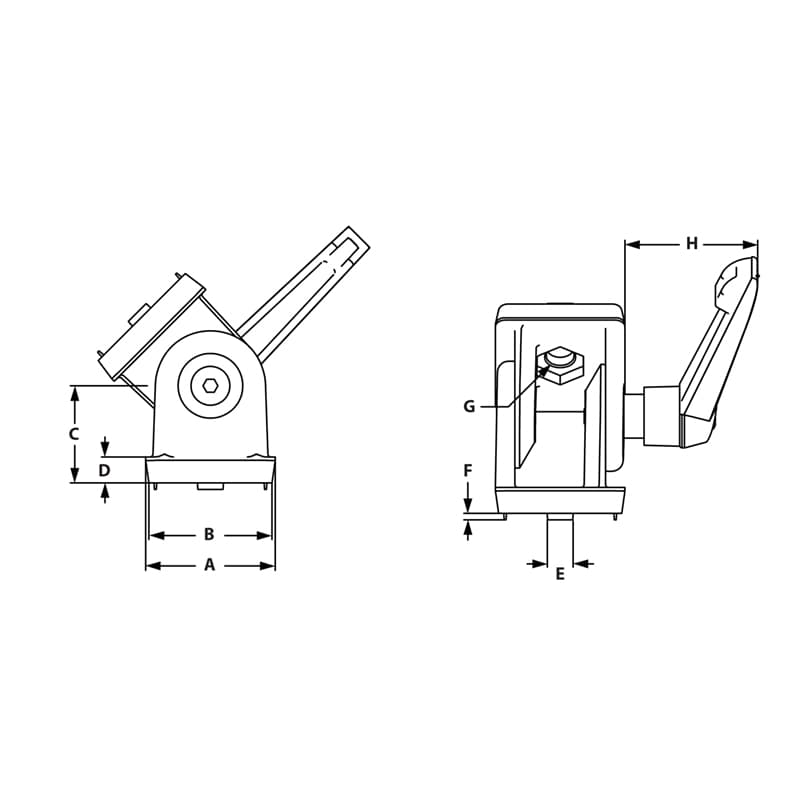

Image of Pivot Joints W Locking Handle Image of Draw-Pivot Joints W Locking Handle

Bushing enables pivot to be both structural and dynamic, Locating pins can be removed to accomodate both extrusion end and side mount assembly

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Material A B C D E F G H List Price Qty. Add to RFQ
664085

10
Die Cast Zinc
1.102"
.984"
.886"
.275"
.236"
.079"
.260"
1.181"
30.816
664087

15
Die Cast Zinc
1.574"
1.496"
1.181"
.315"
.315"
.079"
.335"
1.614"
30.816
