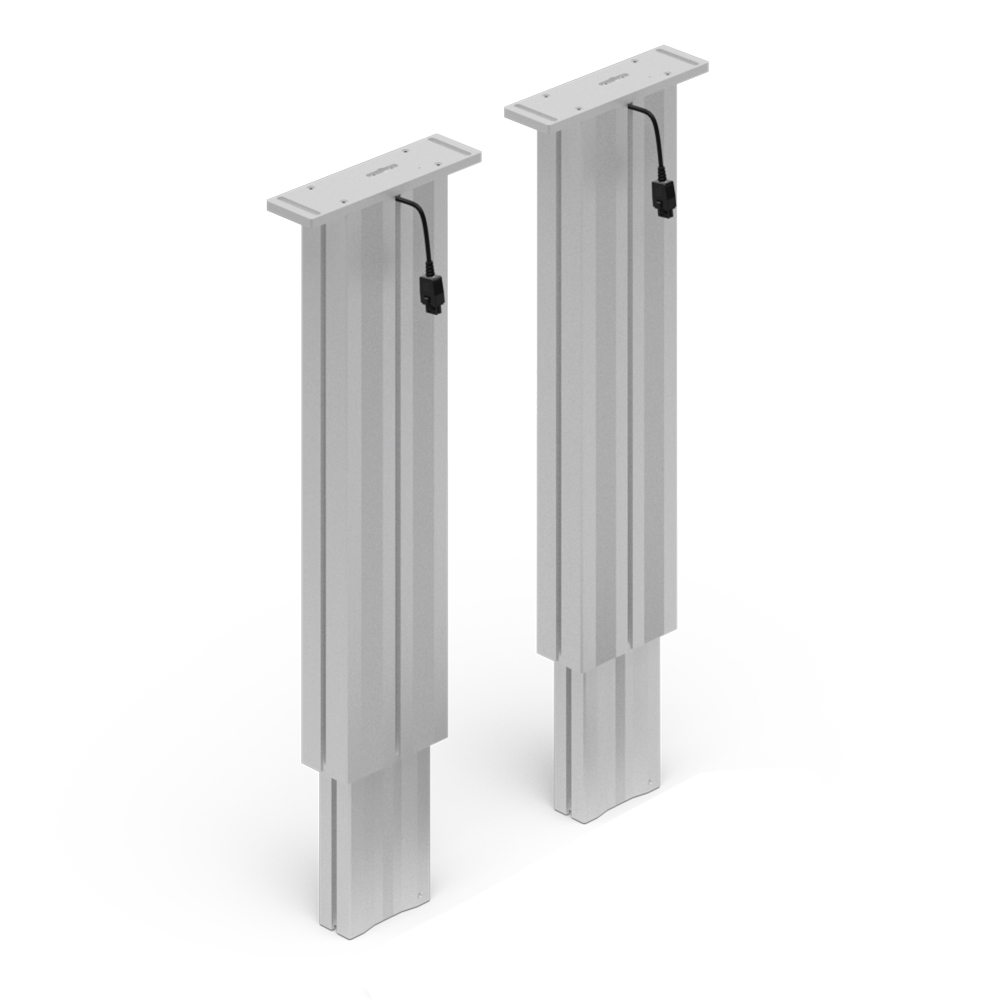

Electric Column Lift System Legs Only
Electric Column Lift System - Legs Only. Works with: Fractional Series 15, B-Series 30/45 and Metric Series 40
Product Details
| A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Fractional
|
9.840"
|
8.660"
|
2.760"
|
2.170"
|
.330"
|
.390"
|
24.800" - 40.550"
|
.980"
|
4.690"
|
5.910"
|
1.500"
|
4.290"
|
.209"
|
2.130"
|
2.760"
|
|
Metric
|
250.00mm
|
220.00mm
|
70.10mm
|
55.12mm
|
8.39mm
|
9.90mm
|
630.00mm - 1030.00mm
|
24.90mm
|
119.13mm
|
150.10mm
|
38.10mm
|
109.00mm
|
5.30mm
|
54.10mm
|
70.10mm
|
