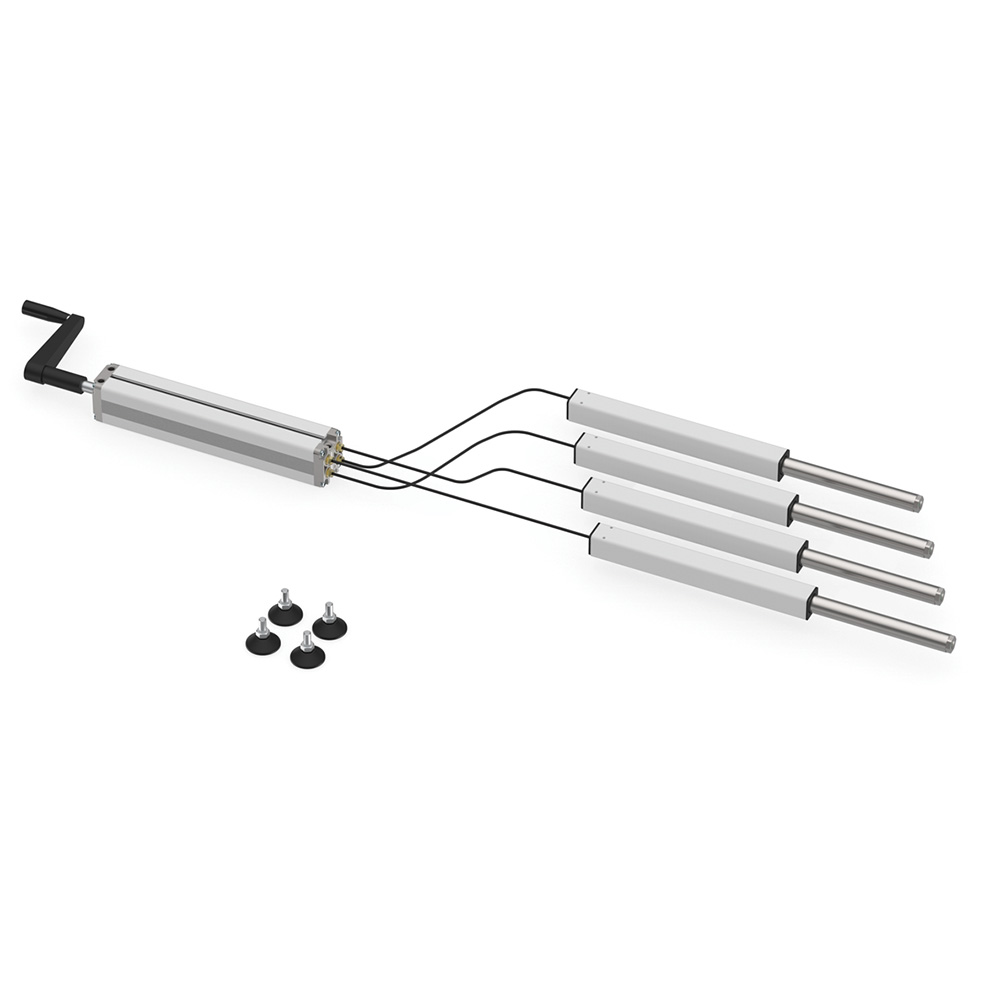

Hand Crank Lift System
Hand Crank Lift System Legs. Works with: Fractional Series 15, B-Series 30/45 and Metric Series 40
Product Details
| A | B | C | D | E | F | G | H | J | K | L | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

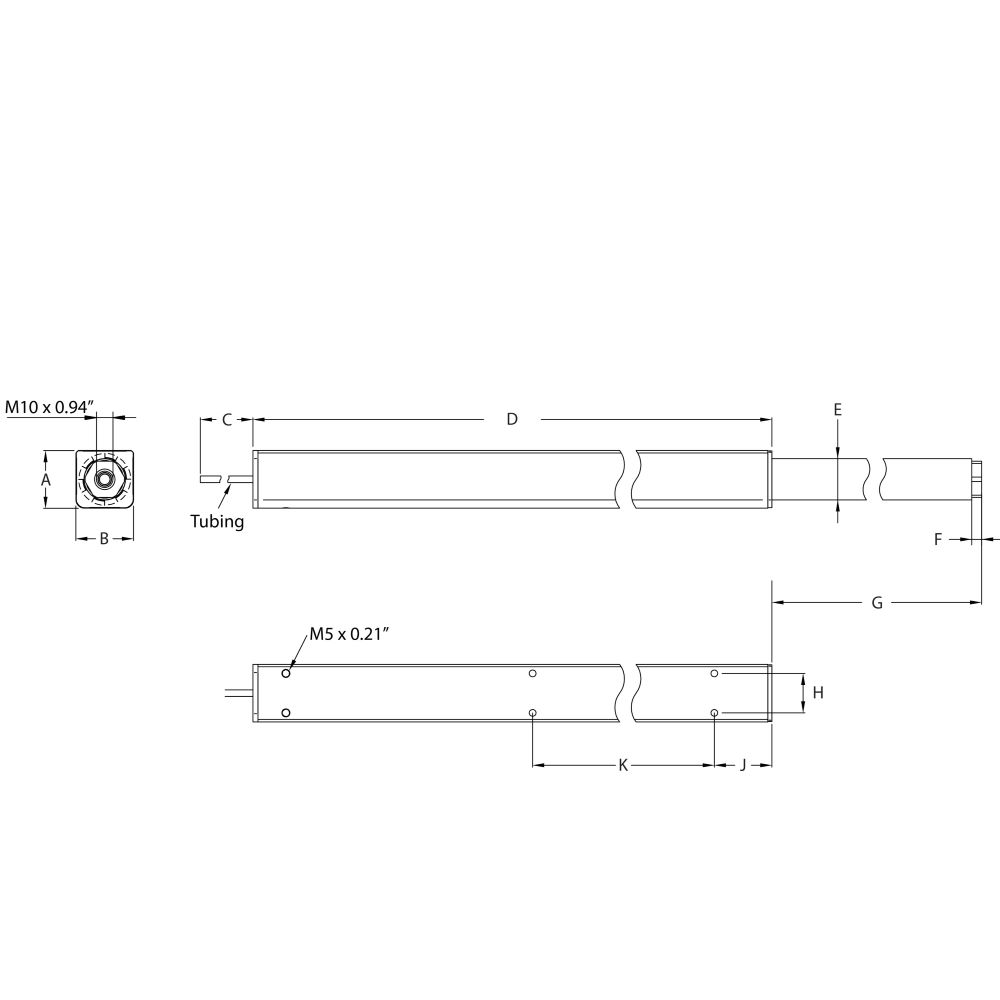

Legs Fractional
|
1.380"
|
1.380"
|
118.000"
|
17.520"
|
.980"
|
.240"
|
11.810"
|
.940"
|
1.380"
|
9.450"
|
|
|

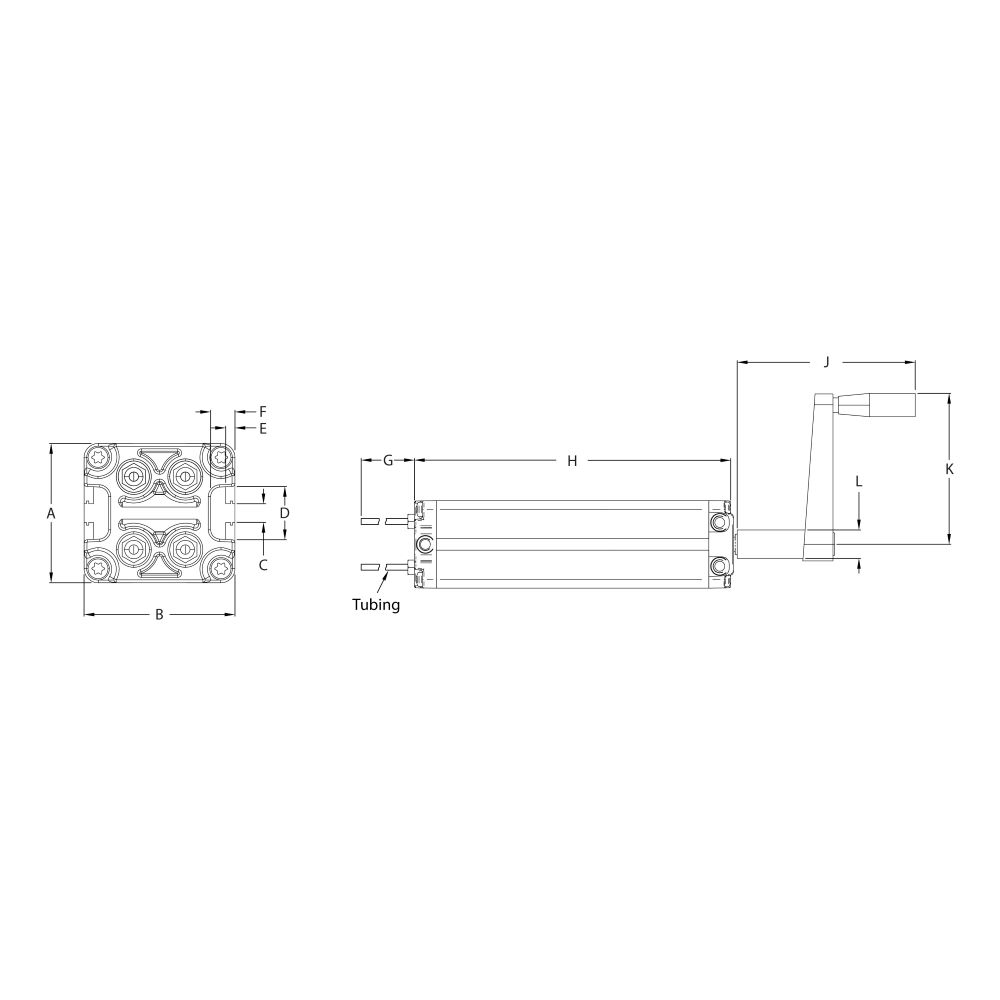

Pump Fractional
|
2.360"
|
2.560"
|
.310"
|
.870"
|
.160"
|
.410"
|
118.00"
|
18.920"
|
7.370"
|
4.920"
|
1.000"
|
|
Legs Metric
|
35.02mm
|
35.02mm
|
2997.00mm
|
445.00mm
|
24.90mm
|
6.10mm
|
300.00mm
|
23.88mm
|
35.02mm
|
240.03mm
|
|
|
Pump Metric
|
59.94mm
|
65.02mm
|
7.87mm
|
22.10mm
|
4.06mm
|
10.41mm
|
2997.00mm
|
480.57mm
|
187.20mm
|
125.00mm
|
25.40mm
|
