4 HOLE CORNER GUSSET

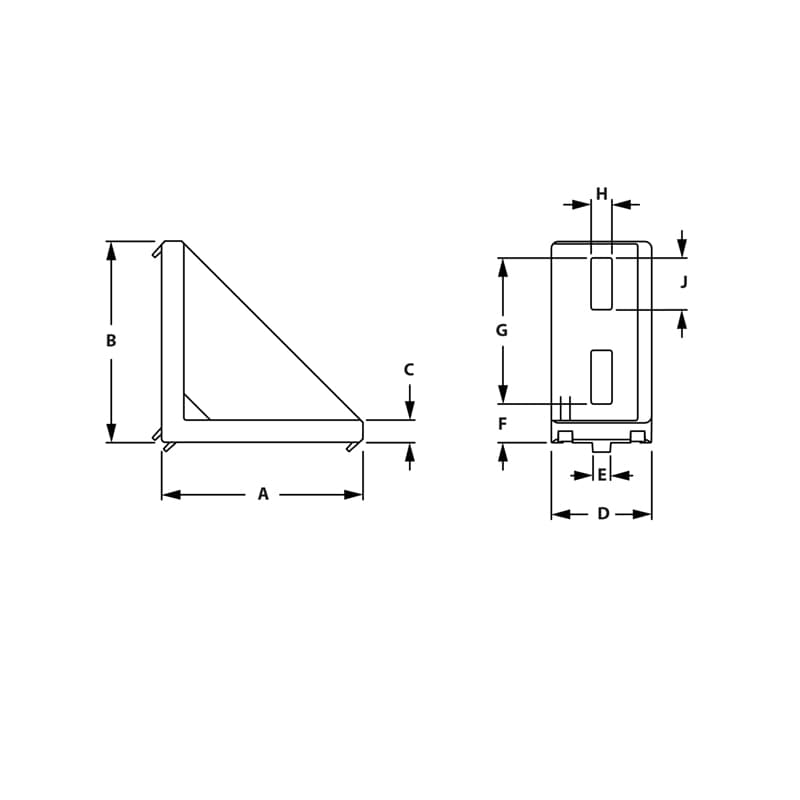

Image of 4 Hole Corner Gusset Image of Draw-4 Hole Corner Gusset

Die-Cast aluminum 4 hole vertical inside corner gusset fastening method connects two extrusion profiles together at a 90-degree connection. This 4 hole vertical inside corner gusset doesn’t require any machining for tightening assembly hardware.

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H J List Price Qty. Add to RFQ
671210

20
Die-Cast
651701
38.00mm
38.00mm
3.00mm
18.00mm
6.00mm
7.00mm
26.50mm
5.2mm
9.00mm
2.311
671212

30
Die-Cast
651702
57.00mm
57.00mm
5.50mm
28.00mm
8.00mm
12.00mm
39.00mm
6.40mm
11.00mm
3.595
671214

40
Die-Cast
651703
76.00mm
76.00mm
8.50mm
38.00mm
10.00mm
12.00mm
56.00mm
9.00mm
20.00mm
6.420
671219
45
Die-Cast
651705
86.00mm
86.00mm
9.50mm
43.00mm
10.00mm
16.50mm
62.50mm
9.00mm
22.00mm
5.778
