4 HOLE 45° ANGLE JOINING PLATE

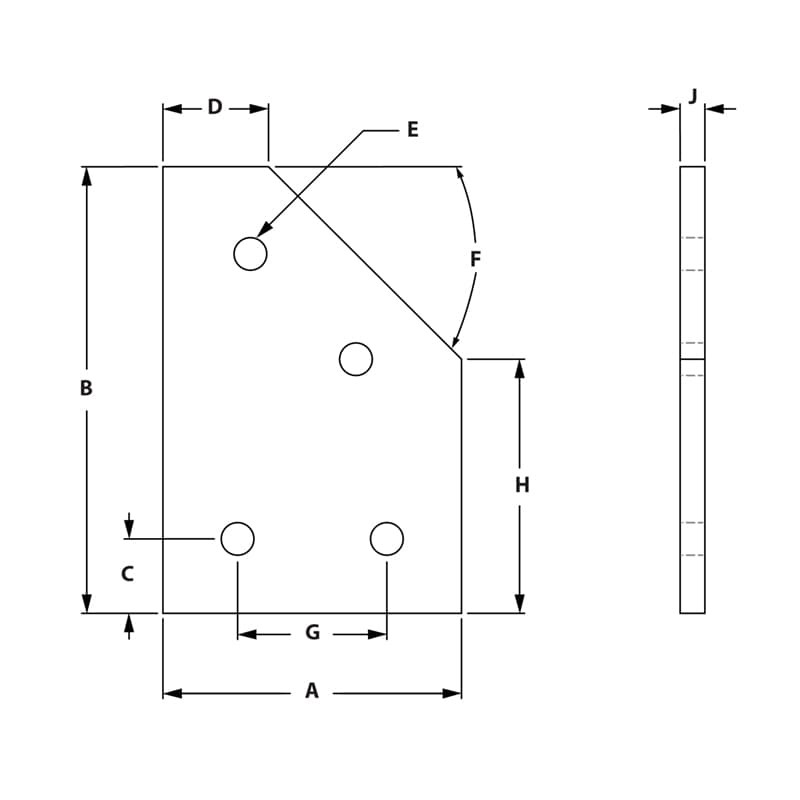

Image of 4 Hole 45 Degree Joining Plate Image of Draw-4 Hole 45 Degree Joining Plate

Anodized aluminum 15 S 4 Hole 45 Deg. Angle Joining Plate fastening method connects two extrusion profiles together at a 45-degree connection. This 15 S 4 Hole 45 Deg. Angle Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H J List Price Qty. Add to RFQ
653178

15
Clear
651129
3.000"
4.500"
.750"
1.061"
.328"
45°
1.500"
2.561"
.250"
8.166
