6 HOLE 45° ANGLE JOINING PLATE

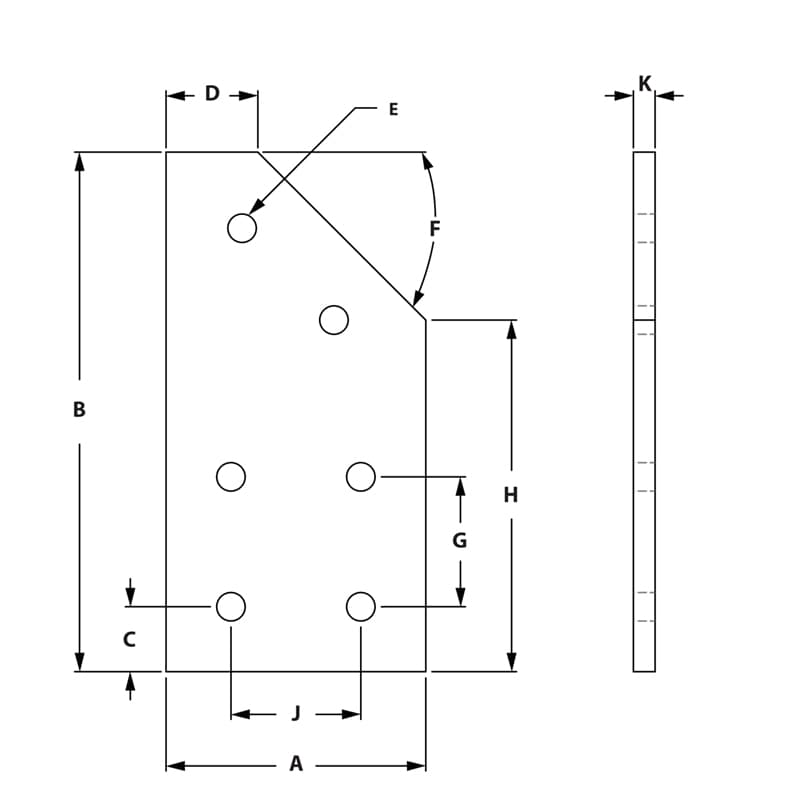

Image of 6 Hole 45 Degree Joining Plate Image of Draw-6 Hole 45 Degree Joining Plate

Anodized aluminum 15S 6 Hole 45 Deg. Angle Joining Plate fastening method connects two extrusion profiles together at a 45-degree connection. This 6 Hole 45 Deg. Angle Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H J K List Price Qty. Add to RFQ
653177

15
Clear
651129
3.000"
6.000"
.750"
1.061"
.328"
45°
1.500"
4.061"
1.500"
.250"
9.187
654177

15
Black
651129
3.000"
6.000"
.750"
1.061"
.328"
45°
1.500"
4.061"
1.500"
.250"
11.520
