7 HOLE 90° STACKED JOINING PLATE

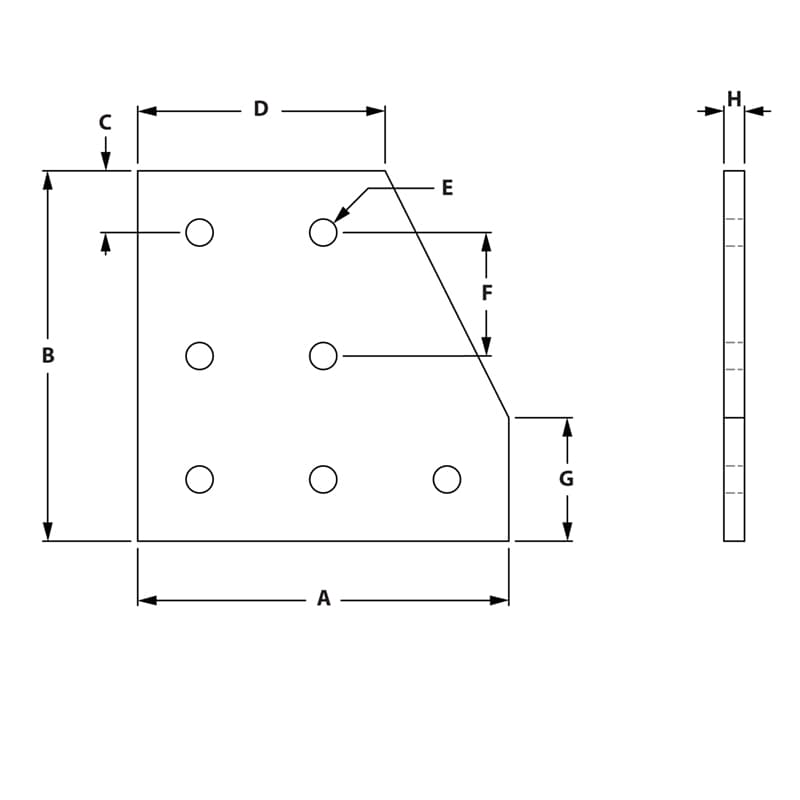

Image of 7 Hole 90 Degree Stacked Joining Plate Image of Draw-7 Hole 90 Degree Stacked Joining Plate

Anodized aluminum 10S 7 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 7 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
653066

10
Clear
651171
3.000"
3.000"
.500"
2.000"
.257"
1.000"
1.000"
.188"
9.323
653162

15
Clear
651129
4.500"
4.500"
.750"
3.000"
.328"
1.500"
1.500"
.250"
9.799
