12 HOLE 90° JOINING PLATE

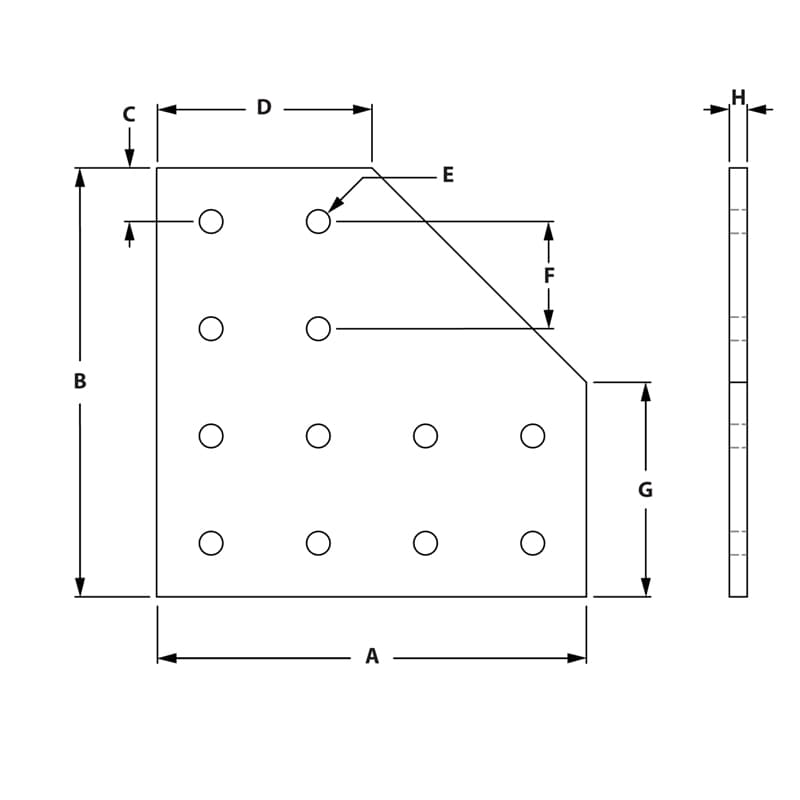

Image of 12 Hole 90 Degree Joining Plate Image of Draw-12 Hole 90 Degree Joining Plate

Anodized aluminum 40S 12 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 12 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
664053

40
Clear
651506
152.40mm
152.40mm
12.40mm
76.20mm
8.33mm
40.00mm
76.20mm
6.35mm
16.673
