DOOR SLIDE TRACK

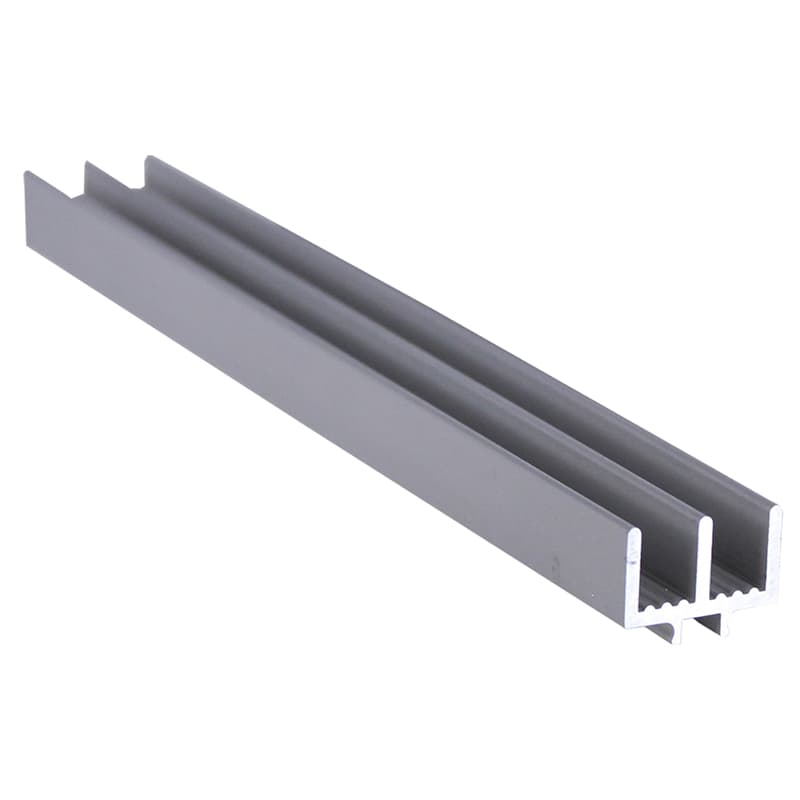

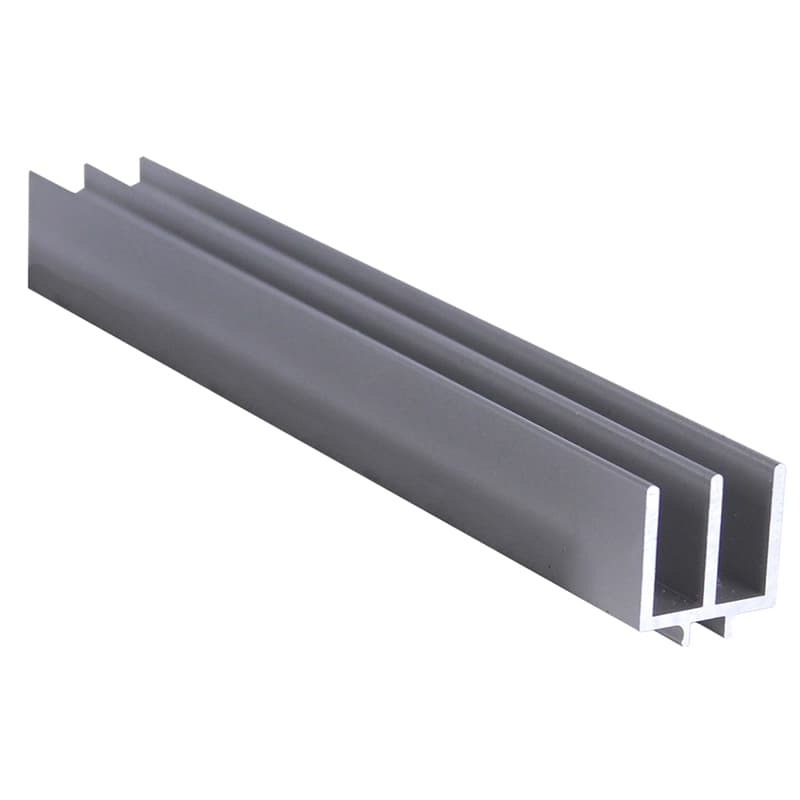

Image of Door Slide Track 655188 Image of Draw-Door Slide Track 655188 Image of Door Slide Track 655189 Image of Draw-Door Slide Track 655189 Image of Door Slide Track 655190 Image of Draw-Door Slide Track 655190 Image of Door Slide Track 655191 Image of Draw-Door Slide Track 655191

Snaps into T-Slot, Deeper slot in upper track allows panel to be inserted after frame is assembled, Radius bearing surface in lower track allows for easier sliding

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

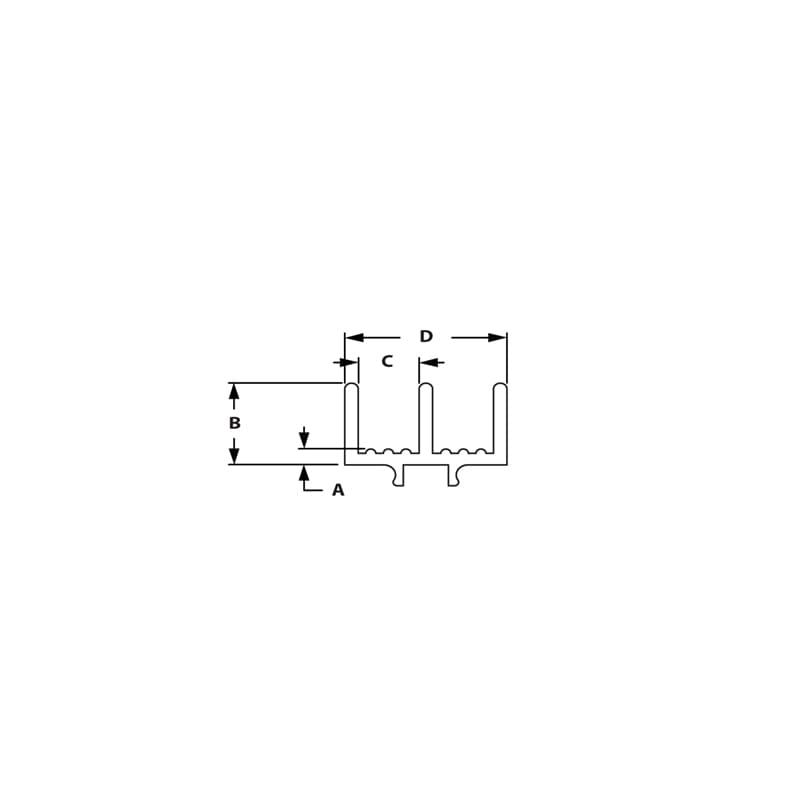

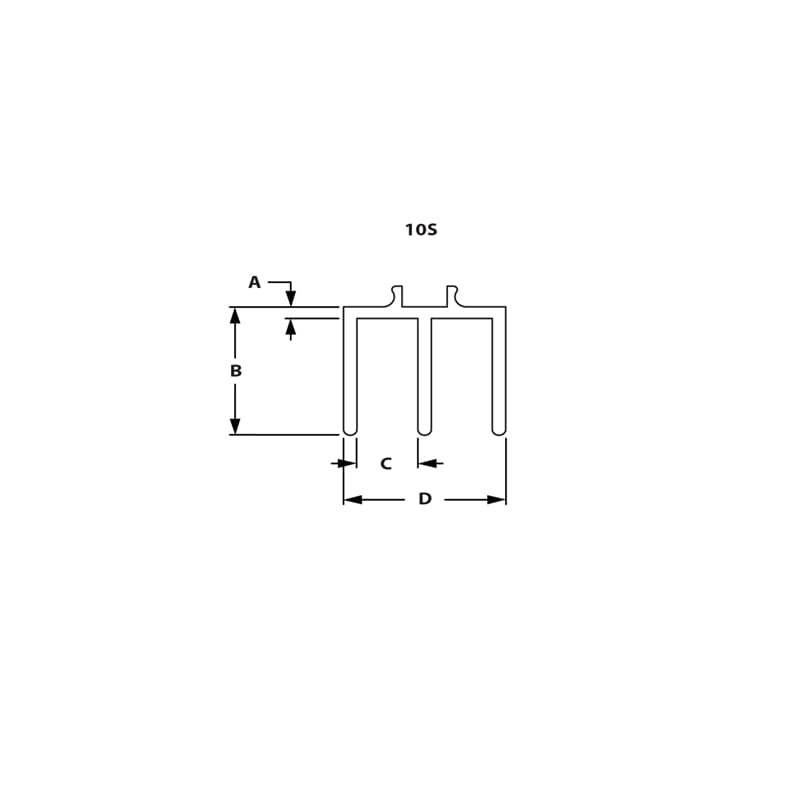

Item # Series Length Track A B C D List Price Qty. Add to RFQ
655188

15
145"
Upper
.060"
.650"
.275"
1.125"
0.286
655189

10
145"
Upper
.620"
.688"
.281"
.750"
0.232
655190

15
145"
Lower
.154"
.400"
.275"
1.125"
0.286
655191

10
145"
Lower
.085"
.438"
.281"
.750"
0.232
