90Degree PIVOT BRACKET ASSEMBLY

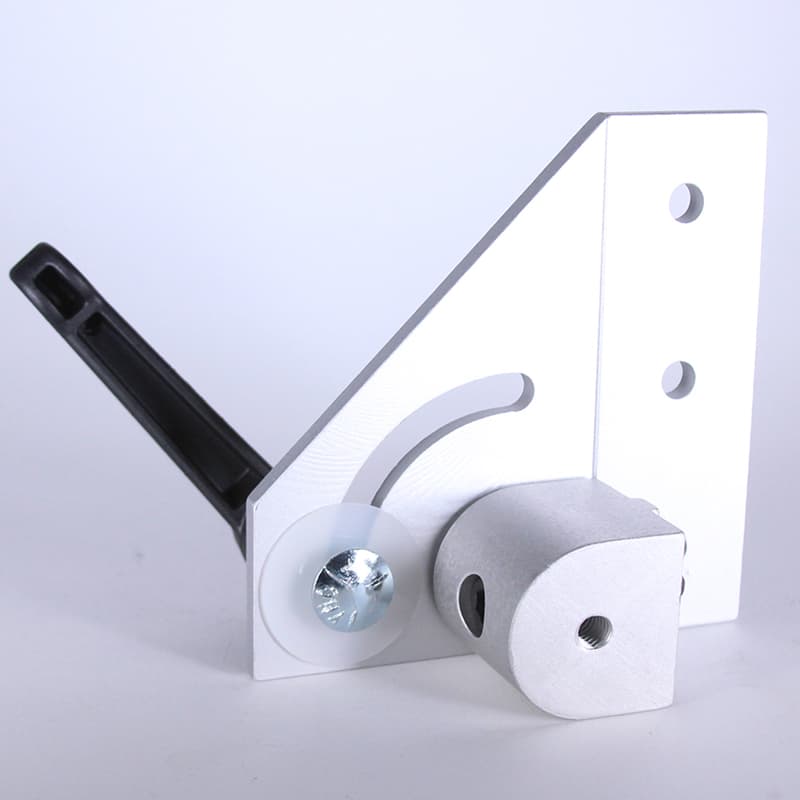

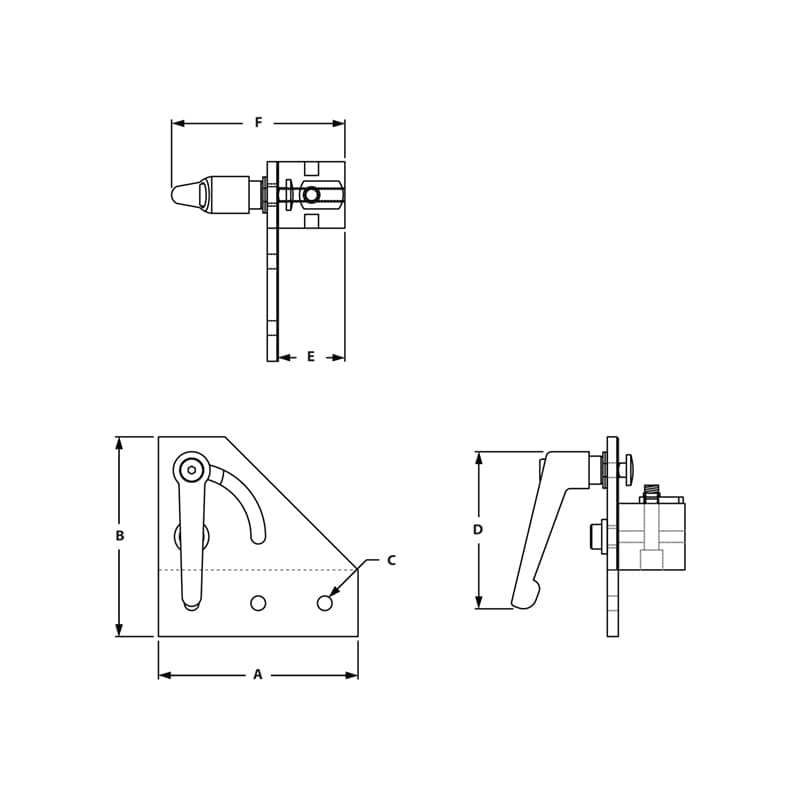

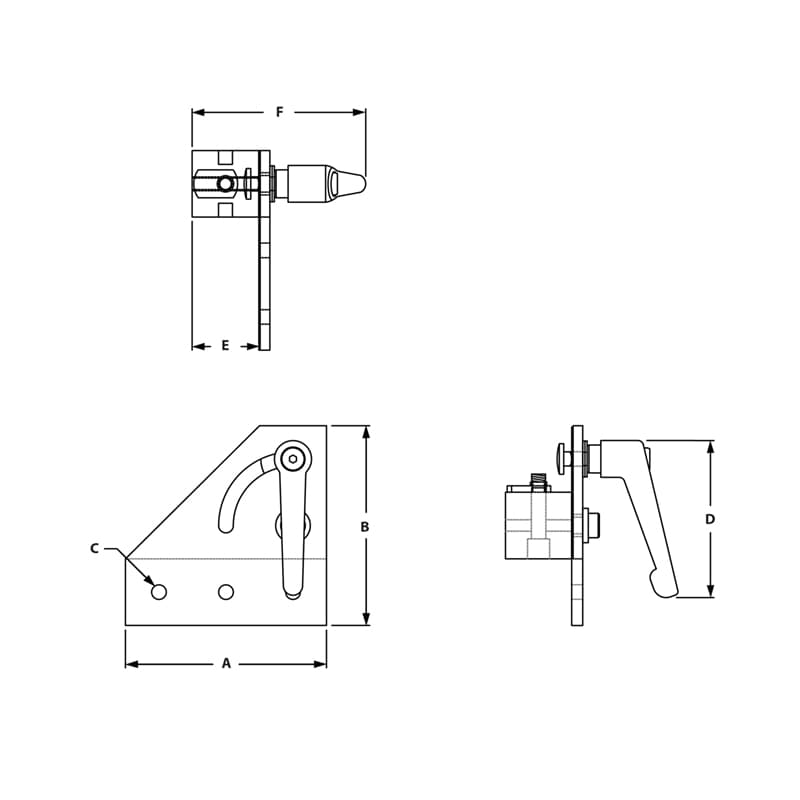

Image of Left Hand Assembly Image of Draw-Left Hand Assembly Image of Right Hand Assembly Image of Draw-Right Hand Assembly

90 Degrees of motion, Permanently lubricated bronze bushings at high strength pivot points, Nylon washers between plate and extrusion allow for smooth motion

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Style A B C D E F List Price Qty. Add to RFQ
653076
10
Left Handed
3.000"
3.000"
.281"
2.055"
1.000"
2.754"
50.650
653172
15
Left Handed
4.500"
4.500"
.328"
3.500"
1.500"
4.015"
55.140
653082
10
Right Handed
3.000"
3.000"
.281"
2.055"
1.000"
2.754"
50.650
653180
15
Right Handed
4.500"
4.500"
.328"
3.500"
1.500"
4.015"
53.710
