LIFT OFF HINGES

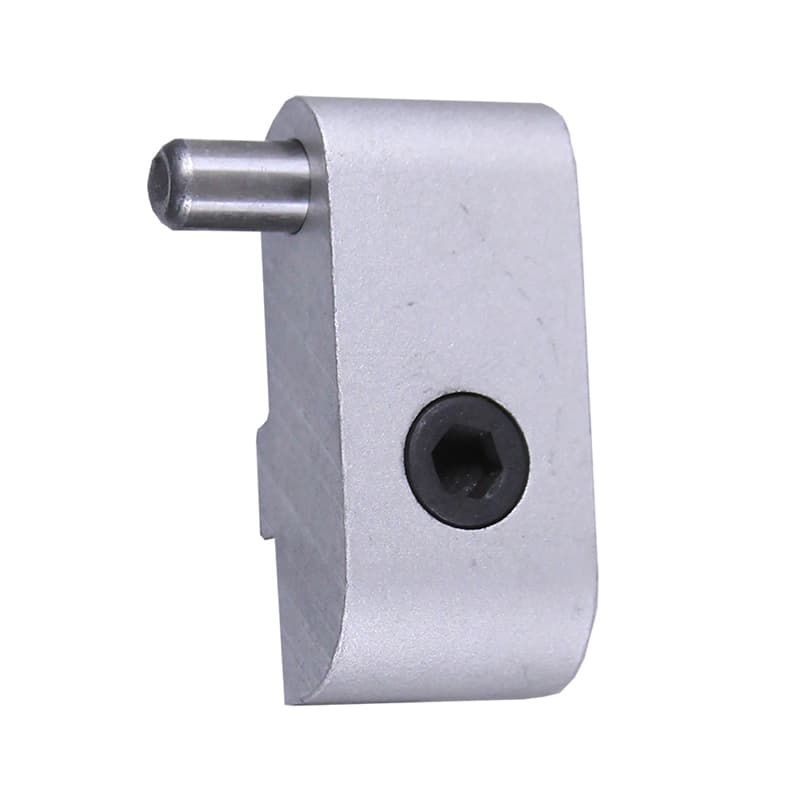

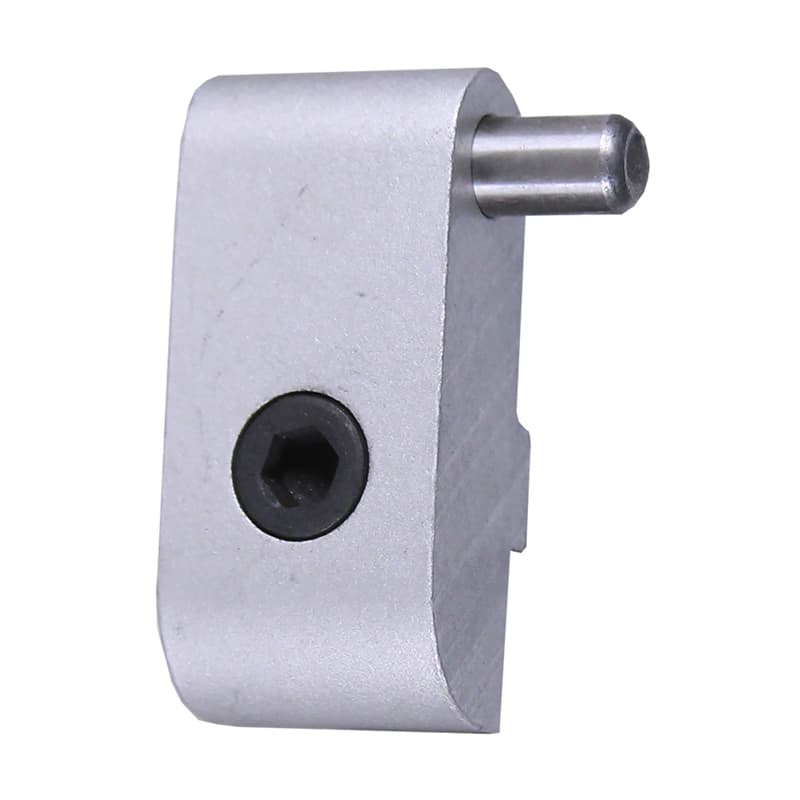

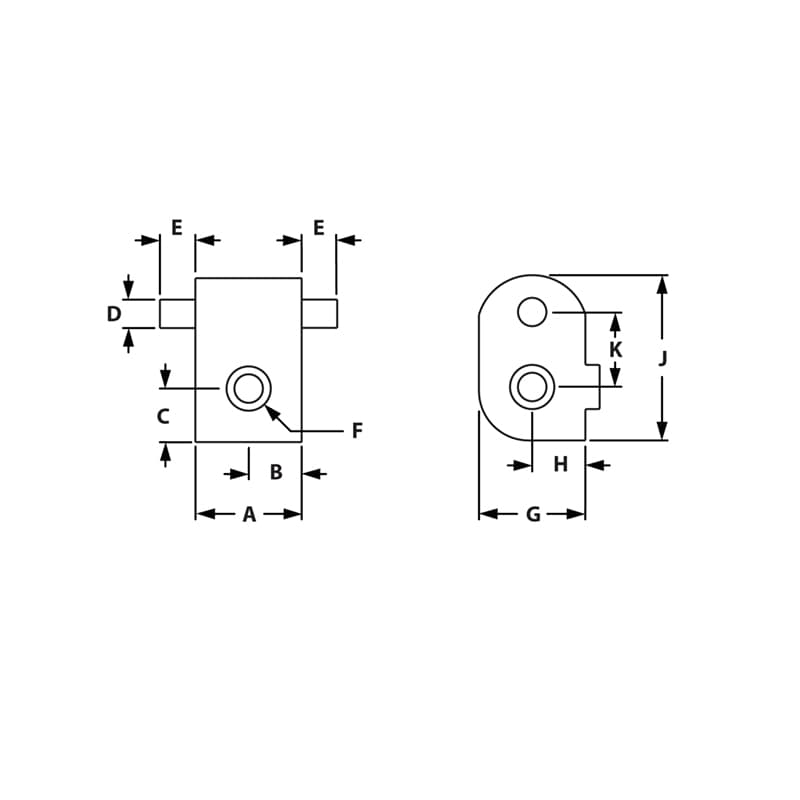

Image of Left Hand Lift Off Long Image of Draw-Lift Off Hinge Image of Left Hand Lift Off Short Image of Right Hand Lift Off Short

Stronger connection, Longer lasting dowel pin and bronze bushing, Mounting fasteners included

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Type Pin Included Bolt Included Bolt Qty Included Tnut Included Tnut Qty A B C D E F G H J K List Price Qty. Add to RFQ
655071

10
Left Hand
Long
651010
1
651096
1
.750"
.375"
.377"
.250"
.750"
10-32
.500"
.250"
1.156"
.529"
10.644
655073

10
Left Hand
Short
651010
1
651096
1
.750"
.375"
.377"
.250"
.360"
10-32
.500"
.250"
1.156"
.529"
10.644
655090

15
Left Hand
Long
651024
1
651105
1
.750"
.375"
.625"
.250"
.750"
1/4-20
.500"
.250"
1.655"
.780"
9.039
655092

15
Left Hand
Short
651024
1
651105
1
.750"
.375"
.625"
.250"
.360"
1/4-20
.500"
.250"
1.655"
.780"
9.039
655070

10
Right Hand
Long
651010
1
651096
1
.750"
.375"
.377"
.250"
.750"
10-32
.500"
.250"
1.156"
.529"
10.644
655072

10
Right Hand
Short
651010
1
651096
1
.750"
.375"
.377"
.250"
.360"
10-32
.500"
.250"
1.156"
.529"
10.644
655089

15
Right Hand
Long
651024
1
651105
1
.750"
.375"
.625"
.250"
.750"
1/4-20
.500"
.250"
1.655"
.780"
9.039
655091

15
Right Hand
Short
651024
1
651105
1
.750"
.375"
.625"
.250"
.360"
1/4-20
.500"
.250"
1.655"
.780"
9.039
